Caractéristiques

Warranty: 1 Year

Customized support: OEM, ODM

Model Number: 5"

Application: Other, Energy & Mining, Drilling Oilfield, Offshore Drill

Power Source: Electric

Pressure: Low Pressure

Structure: PISTON PUMP

Standard: API 7K for Drilling Mud Pumps

Bore Dia.: 25.4mm, 38.1mm, 421mm, 1-1/2, 1-1/2/1-5/8 , 1-5/8 ,

Dimension: 3-1/2, 4, 4-1/2, 5, 5-1/2, 6 , 100, 110, 6-1/2, 6-1/4

Piston Cup Material: PU(polyurethane), NBR rubber, HNBR rubber

Piston Bore Material: 42CrMo

Classfication: Boned Urethane , Boned Rubber , Replaceable Rubber , Premium Bonded

Certification: API, ISO

Informations de base

Certification: API, ISO

Model Number: 5"

Conditions de paiement et expédition

Packaging Details: Stabdard export package or at consumer's request (Common package please refer to the picture showed in Product Details

Description de produit

Products Description

What is the Mud Pump Piston for Mud Pump Liner?

Mud pump piston for mud pump liner is the expendable part of the drilling pump fluid system and it's one of the biggest wearing parts of drilling work.

* The mud pump piston assembly is the major part of the mud pump fluid end. The piston assembly is composed of a snap spring, retainer（press plate), piston cup, and piston bore.

* The discharge pressure of the mud pump is generated by the up-and-down motion of the piston in the cylinder liner. Small piston—high pressure and low flow rate; Big piston—low pressure and high flow rate. * Metric pump and inch pump adopts metric piston and inch piston respectively.

Material: Piston Bore(Hub) Material: 42CrMo. Piston Cup material: PU(polyurethane), NBR rubber, HNBR rubber

Classfication

Classfication of Mud Pump Pistons: There are two types of pistons: 1.--Bonded Pistons:

Vulcanizing piston cup on piston hub directly, and don’t need press plate and snap spring to fix.

One piece bonded constructed piston, no joints, no leakage.

2.--Replaceable Pistons:

The replaceable pistons can remove the piston cup, and the pistons are fixed by press plate and snap ring.

* Someone also distinguishes the pistons by single action piston and double-action piston. The double-action piston is often used in Russian pumps.

A. REPLACEABLE PISTONS

BAORUI replaceable pistons are made with nitrile rubber or polyurethane and the piston’s maximum pressure capability is due to this oil, water, and heat resistant material.

Features 1).-- High tensile strength. 2).-- Maximum operating temperature is 250°F. 3).-- Ready for all drilling operations. 4).-- Extended service life.

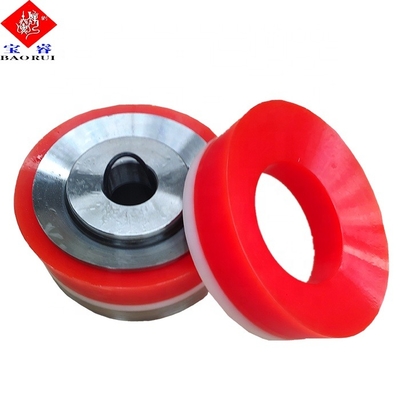

B. BONDED URETHANE PISTONS

BAORUI’s bonded polyurethane pistons are designed for resistance to extrusions and abrasions. And with water cooling, it will provide optimum performance in oil base mud and high drilling pressures. Material of Piston Cup: urethane material.

Features 1.-- Rated for all drilling operations up and exceeding 5000psi. 2.-- Maximum operating temperature is 170°F. 3.-- High-pressure mud pump service.

C. BONDED RUBBER PISTONS

BAORUI pistons are constructed of nitrile rubber bonded to a solid metal hub. The oil-resistant rubber is designed to provide optimum performance in an oil base or water base mud and high drilling pressures. Features 1.-- High tensile strength. 2.-- Maximum operating temperature is 250°F. 3.-- Ready for all drilling operations. 4.-- Extended service life.

D. ENDURANCE PREMIUM BONDED PISTONS

Someone also calls supreme piston; high temperature resistance piston. One piece bonded constructed piston, no joints, no leakage. * Material of Piston Cup: urethane material * Service life: ≥400 hours * Suitable for zirconial ceramic liner and high pressure mud pump * Good performance under extreme drilling conditions Features 1.-- Rated for all drilling operations up and exceeding 5000psi. 2.--Maximum operating temperature is 200°F. 3.-- Extended service life. 4.-- High-temperature tolerance. 5.-- High tolerance to chemical attack.

These pistons are fully interchangeable with most other manufacturers.

EMSCO	F500, F800, F1000, FB1300, FB1600
GARDEN DENVER	PAH, TEE-5, PZ-7, PZ-8, PZ-9, PZ-10, PZ-11
NATIONAL	JWS165/340, JWS400, 7-P-50, 8-P-80, 9-P-100, 10-P-130, 12-P-160
OILWELL	A-560-PT, A-600-PT, A-850-PT, A-1100-PT, A-1400-PT, A-1700-PT
IDECO	T500, T800, T1000, T1300, T1600
F-SERIES (China Made)	F500, F800, F1000, F1300, F1600, F1600L, F1600HL
3NB-SERIES (China Made)	3NB-500, 3NB-800, 3NB-1000, 3NB-1300, 3NB-1600

Recommend Products

Other Spare Parts

Manufacturing Technique

Packaging Logistics

To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.

Sample order: we suggest Courier express like DHL/UPS/TNT/FEDEX or by air.
Bulk order: we suggest by air or by sea.

Katherine Lee

Email：tiandiguiyi@gmail.com

TEL/ WhatsApp/Wechat：86-15853653715

FAQ

1.-- Methods of Payment:

T/T (Telegraphic Transfer) or L/C at sight.

2.-- Shipping Way:

Sample order: we suggest Courier express like DHL/UPS/TNT/FEDEX or by air.

Bulk order: we suggest by air or by sea.

3.-- Quality Control:

All the production and processing are strictly according to ISO 9001:2008 and API standard. We have our own experienced QC. There will be strict inspection and testing for every order before shipping out.
